Boomerang®

Anterior Cervical Plate System

Learn More

Boomerang®

Anterior Cervical Plate System

The ChoiceSpine Boomerang® Anterior Cervical Plate System is a low-profile, two-screw implant that can be inserted simultaneously with our TigerShark® C 3D Printed Titanium Interbody or Stealth™ PEEK Interbody. Boomerang has an integrated single-step screw locking mechanism for fast insertion and fixation to the anterior cervical spine. In addition, the plate’s low-profile offset design allows Boomerang to be used for multiple adjacent levels and is an excellent option for revision surgery.

Watch Videos

Learn More

The ChoiceSpine Boomerang® Anterior Cervical Plate System is a low-profile, two-screw implant that can be inserted simultaneously with our TigerShark® C 3D Printed Titanium Interbody or Stealth™ PEEK Interbody. Boomerang has an integrated single-step screw locking mechanism for fast insertion and fixation to the anterior cervical spine. In addition, the plate’s low-profile offset design allows Boomerang to be used for multiple adjacent levels and is an excellent option for revision surgery.

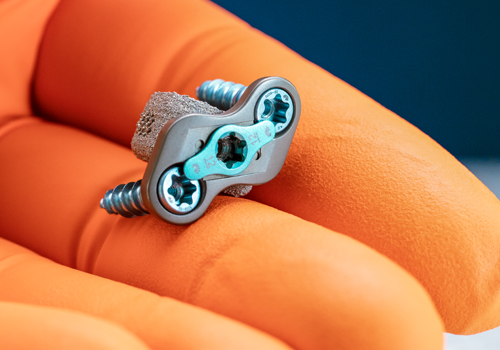

Boomerang Image
510(k) Cleared for Cervical Use

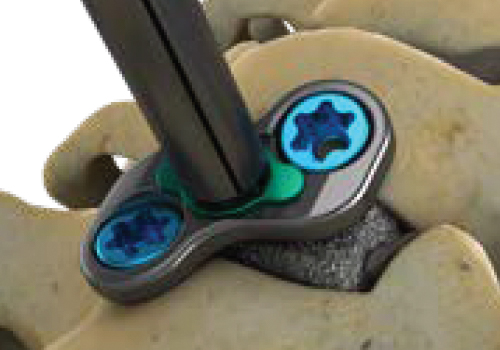

Boomerang Being Screwed In
Integrated Single-Step Screw Blocking Mechanism

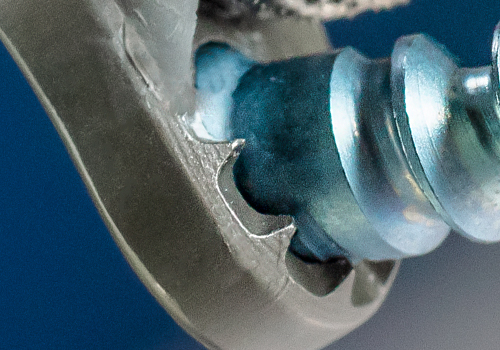

Boomerang Implant Closeup From behind
Anti-Migration Teeth
Boomerang and Tigershark C X-Ray Image
Stackable to Accommodate Multiple Levels

Achieve Synchronized Insertion with Cervical Interbody Implants

Standalone ACDF concept with a separate 510(k) cleared anterior cervical plate and cervical interbody.

We collaborated with surgeon input to engineer an anterior cervical plate system requiring fewer steps and fewer instruments. Boomerang provides fast and accurate alignment with cervical interbody implants to achieve synchronized implantation without fully integrating both devices.

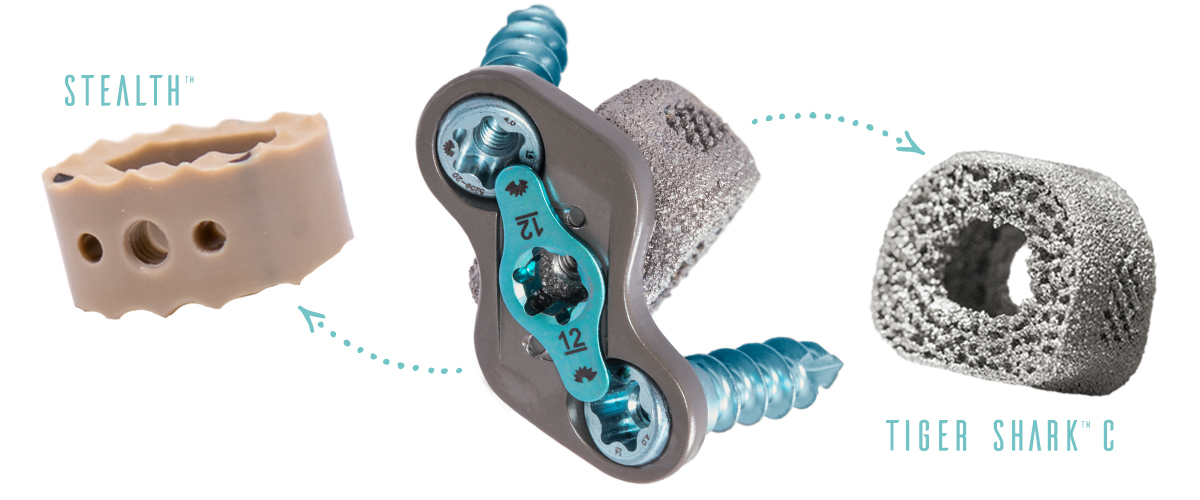

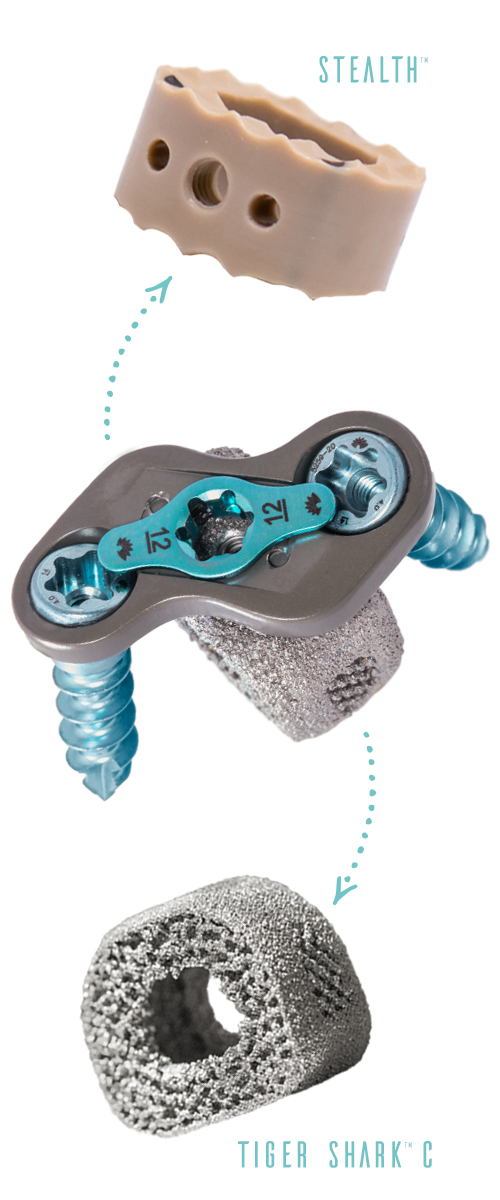

Compatible with Tiger Shark® C and Stealth™ cervical interbody implants.

Boomerang being compatible with Tigershark C and Stealth
Boomerang being compatible with Tigershark C and Stealth

Ready to Learn More?

Boomerang Features

Traditional 510(k) plate clearance for cervical use Boomerang was tested against a traditional plate in compression bending and torsion for strength

Stackable to accommodate multiple adjacent levels

Insert together using TigerShark® C or Stealth™ cervical interbody design to limit steps in the operating room

Integrated single-step screw locking mechanism allows for visual and tactile confirmation of locking

20° Maximum Cranial/Caudal Screw Angulation

Easy to use and minimal instrumentation

Implant Sizes

Plate Sizes (screw-to-screw): 10mm-13mm

(1mm increments); Optional sizing: 14mm, 16mm and 18mm

Overall Plate Size: Plate Size + 7.5mm

Plate Width: 15mm

Screw Diameters: Ø4.0mm and Ø4.5mm

Screw Lengths: 10mm-16mm (2mm increments)

Plate Thickness: 2.2mm

Watch as Lead Designer, Matt Kubo, explains how Boomerang® is simplifying ACDF procedures through optimal design and streamlined instrumentation.
