Raven ™

Lateral Lumbar Plate System

The Raven Lumbar Plate System is a lateral plate system that may be used in the thoracic, lumbar, and sacral spine (T1-S1). The Raven Lumbar Plate System consists of plates and screws manufactured from titanium alloy (Ti-6Al-4V ELI) per ASTM F136, as well as associated manual general surgical instrumentation. The implants are available in a variety of sizes to accommodate various patient anatomies.

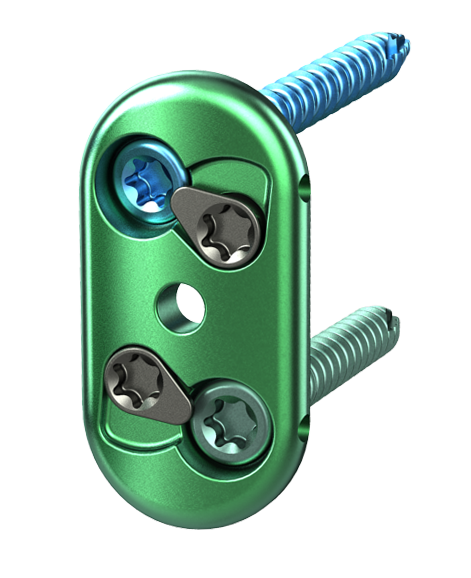

RL web - Raven Lateral

Lateral Lumbar Plate System

web 2 1 - Raven Lateral

System Features

  • Two-Screw Design

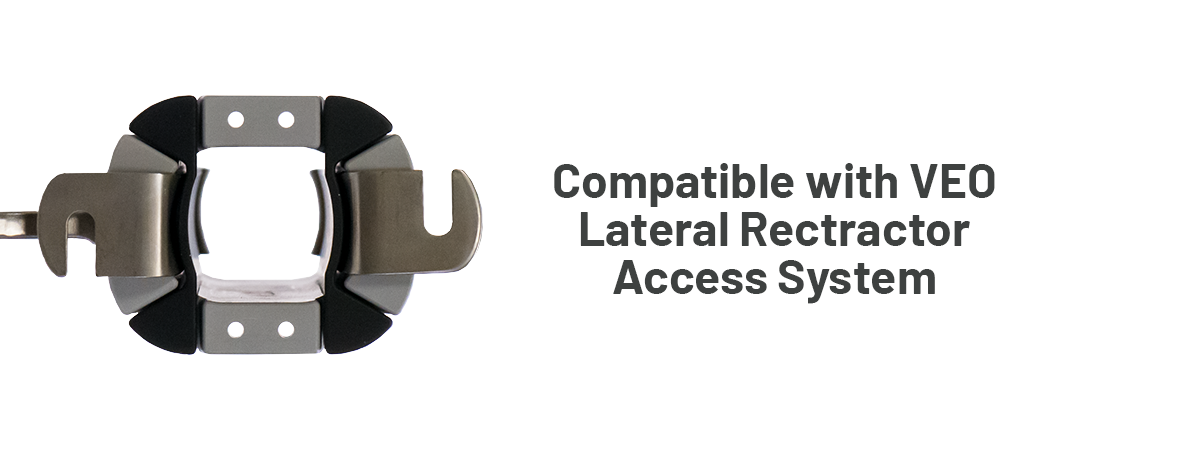

  • Compatibility with the VEO Retractor
  • Integrated Single-Step Screw Blocking Mechanism
  • Variable Screw Angulation
  • Plate Heights: 15mm – 23mm in 2mm increments
  • Screw Lengths: 35mm – 60mm in 5mm increments
  • Screw Diameters: ø5.0mm & ø5.5mm
  • Streamlined Instrumentation

Information

Product Information
Surgical Technique Guide
Instruction For Use (IFU)
