GIBRALT™ Spinal System

GIBRALT®

Spinal System

The GIBRALT Spinal System is a comprehensive solution for posterior stabilization and fusion of the cervical and thoracic spine. Offering exceptional versatility and ease-of-use, the GIBRALT Spinal System features top-loading polyaxial screws, hooks, offset connectors, rod-to-rod connectors, and occipital plates which can be constructed into a multitude of configurations based on individual patient anatomy.

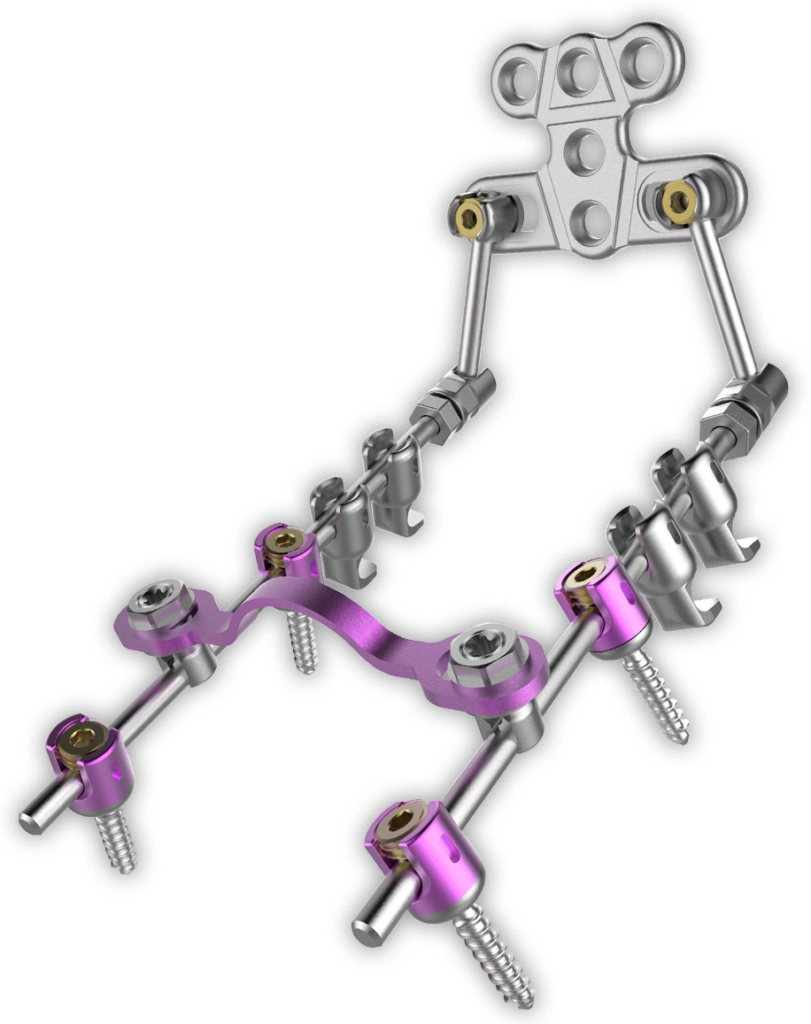

gibralt 811x1024 1 - GIBRALT®

Comprehensive Posterior Fixation

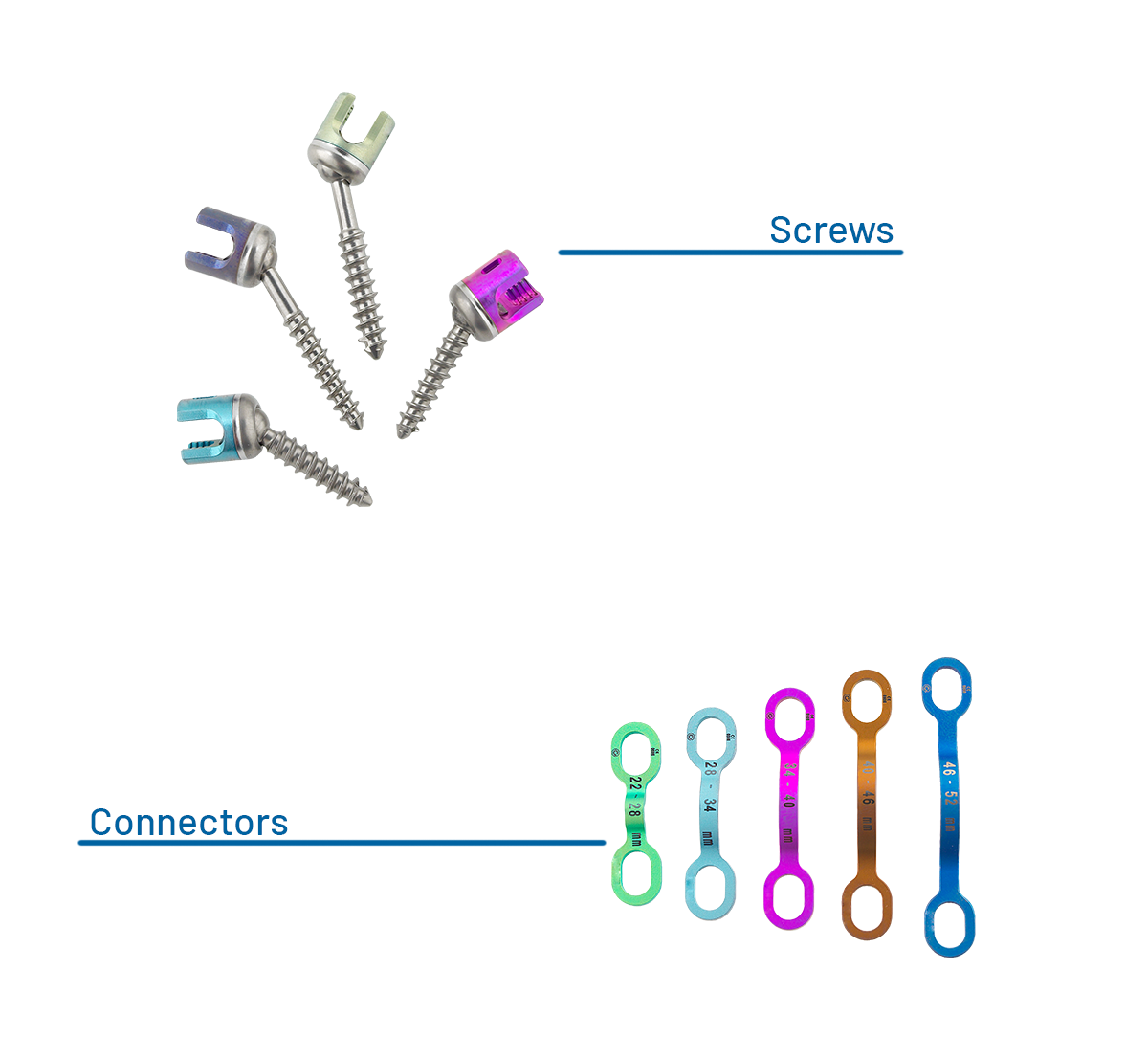

gibralt 2 - GIBRALT®

System Features

Screws
  • Top-loading Set Polyaxial Tulip Head allows the surgeon to easily position and set the tulip head at any angle
  • Low-profile design and 80° maximum range of motion in the Tulip Head allow easier adaptation to individual patient anatomy
  • Screw diameters include 3.5mm, 4.0mm and 4.5mm
  • Screw lengths range from 10mm to 50mm
Rods
  • 3.5mm Titanium Alloy rods
  • Three-point fixation maximizes contact between the set screw and rod interface
  • Rod-to-rod connectors are available in wedding band, combination, and in-line configurations
  • Transitional rods allow the system to work in conjunction with the 5.5mm rod systems and thoraco-lumbar pedicle screws

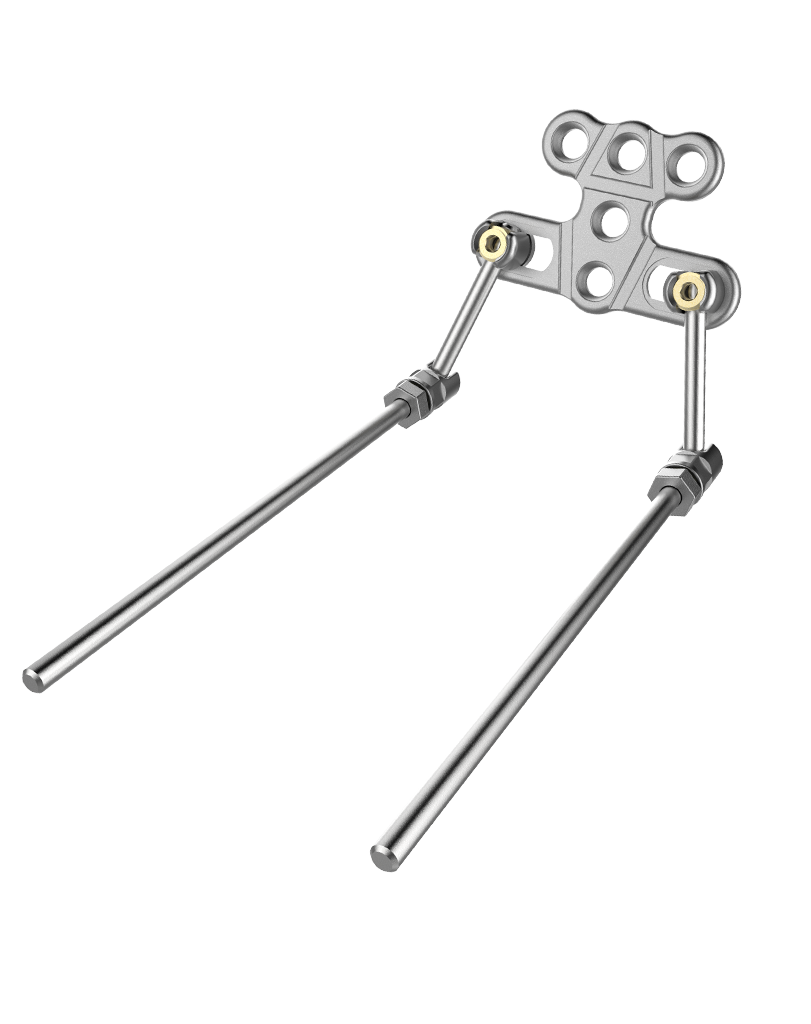

Occipital Plate, Screws, & Rod
  • Allows for occipital midline fixation
  • Two sizes of occipital plate with medial lateral adaptability from 25-35mm and 35-45mm
  • 4mm diameter Screws with lengths 6mm to 16mm
  • 3.5mm rod diameter
  • 360° flexibility in positioning
  • A simple torque-limiting driver to secure rod position
Connectors
  • Low-profile cross connector that is easy-to-use and bridges rod distances from 22mm to 52mm
  • Off-set connectors are available in 12mm and 15mm lengths
  • Unique hook design provides secure bone purchase without impinging into the canal
  • Straight, angled, and off-set hook configurations

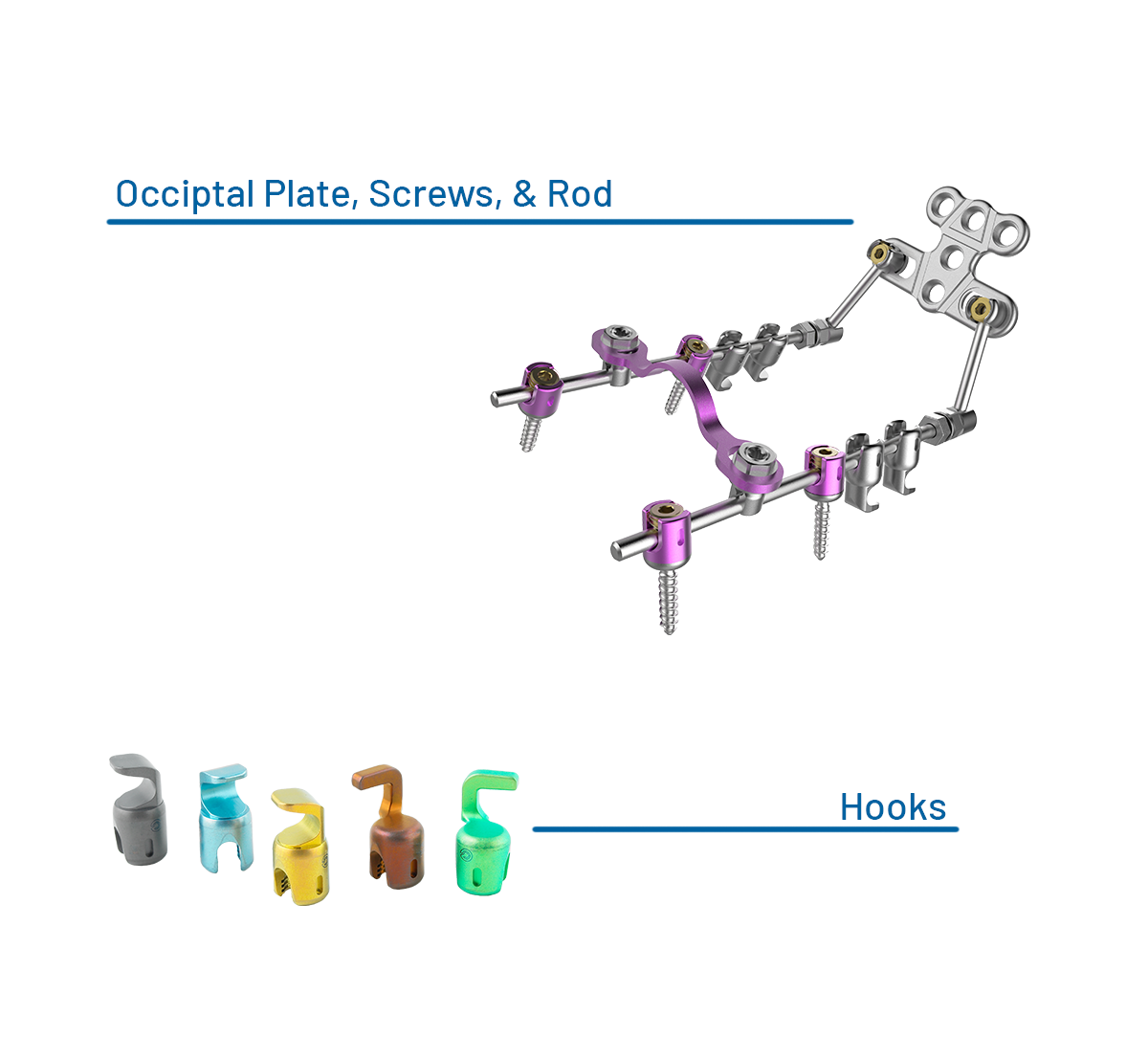

gibralt 1 - GIBRALT®
